TEP100WIR Series
£0.00
SKU: TEP100 WIR

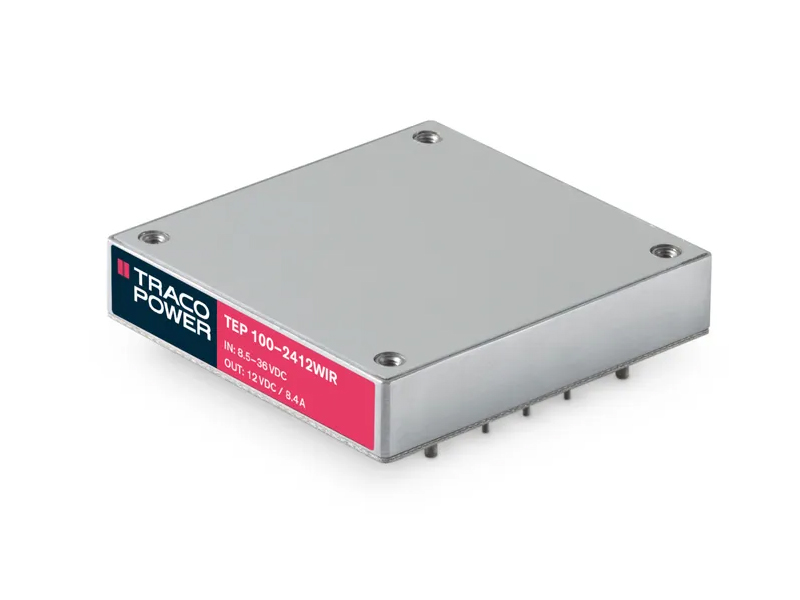

The TEP 100WIR Series is a family of isolated high performance DC/DC
converter modules with ultra-wide 4:1 input voltage ranges which come in a
rugged, sealed industry standard half brick package. A very high efficiency
allows full power operation without forced air cooling at 60°C This temperature
can be increased to 70°C with optional mounted heatsink or up to 85°C when
mounted on an iron base plate. The very wide input voltage range make these
converters interesting solution for battery operated systems. Typical
applications are in telecom/datacom, industry control and railway systems for
on board power distribution. These series is available in many optional designs
on demand
• Compact half-brick package

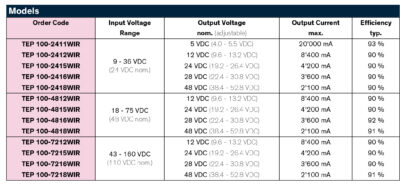

• Ultra wide 4:1 input voltage ranges 9–36, 18–75, 43–160 VDC
• EN 50155 approval for railway applications
• Very high efficiency up to 93%
• No minimum load
• Soft start
• Adjustable output voltage +10/-20%
• Sense line
• Remote On/Off input
• Under voltage lock-out circuit
• 3-year product warranty
