TEQ300WIR Series
£0.00
SKU: TEQ300WIR

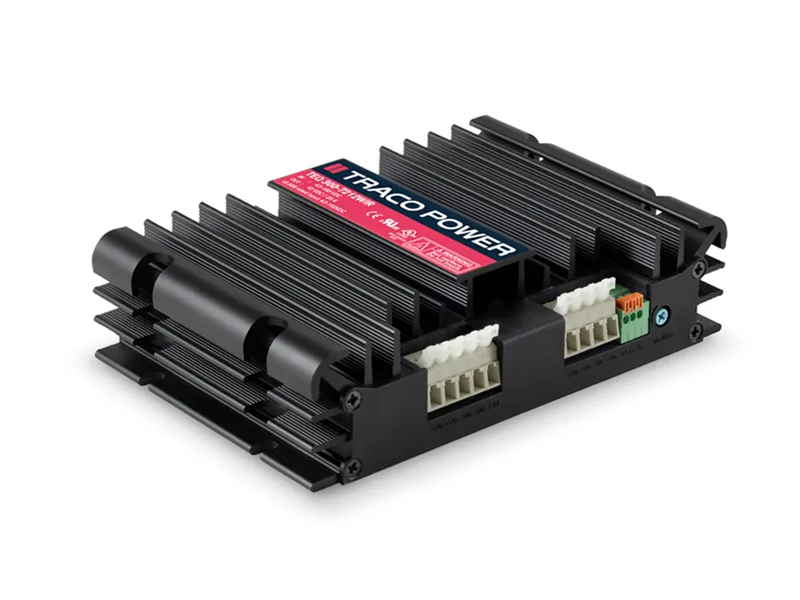

The TEQ 300WIR Series is a family of isolated high performance DC/DC
converter modules with ultra-wide 4:1 input voltage ranges which come in a
rugged, sealed metal case.
These converters are suitable for a wide range of applications, but the product
is designed particularly also for industrial applications where often no PCB
mounting is possible but the module has to be mounted on a chassis. A very
high efficiency and the overall heatsink construction allows an operating
temperature up to +55°C with natural convection cooling without power
derating and up to +80°C with power derating. Further features include output
voltage trimming, Remote On/Off and under voltage lockout. The ultra wide
input voltage range makes these converters also an interesting solution for
battery operated systems.
• High power block with excellent thermal convection
• Operating temperature -40°C to +80°C
• Increased shock & vibration resistance
• Ultra wide 4:1 input voltage range
• EN 50155 approval for railway applications
• Excellent efficiency up to 92%
• Constant current output characteristic for battery load applications
• Power sharing (up to 3 pcs in parallel)
• Input filter meet EN 55022, class A
• Under voltage lock-out circuit
• 3-year product warranty
