TES 2N Series
£0.00
SKU: TES 2N

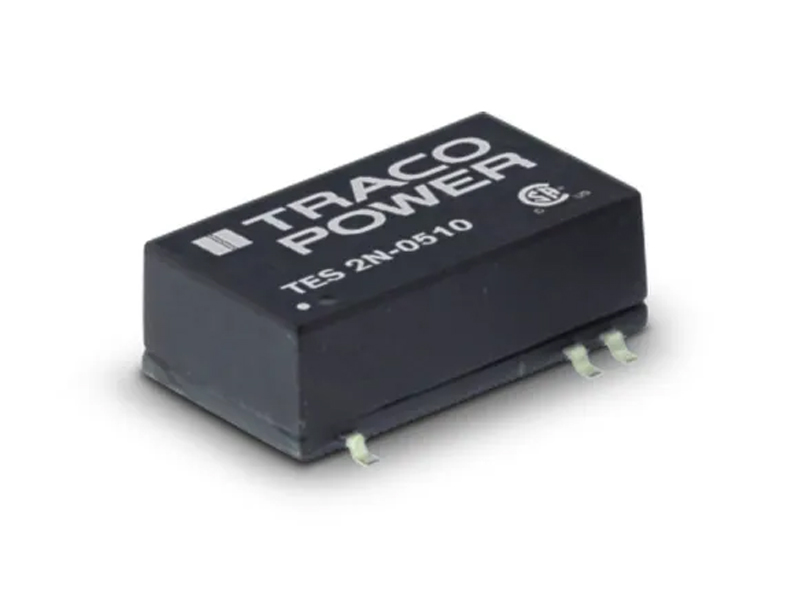

The TES-2N series is a family of high performance 2W DC/DC converter modules featuring wide 2:1 input voltage ranges. The 28 models come in a low profile SMD package which requires just 3 cm2 space on the PCB. A high efficiency allows an ope-rating temperature range of –40°C to +85°C. A built-in EMI input filter complies with EN 55022, class A. Typical applications for these converters are battery operated equipment, instrumentation, communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required.
Low profile SMD-package
Wide 2:1 input voltage range
I/O isolation 1500 VDC
Input filter meets EN55022, class A
Operating temperature range – 40°C to +85°C
Short-circuit protection
Qualified for leadfree reflow solder process according IPC J-STD-020D.1
Available in tape and reel package
Bears washing process
3-year product warranty
