TES 3 Series
£0.00
SKU: TES 3

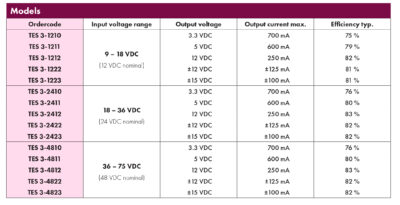

The TES-3 series is a family of high performance 3W dc-dc converter modules
featuring wide 2:1 input voltage ranges. The 15 models come in a low profile
SMD package with dimensions of 32.3 x 14.8 x 10.2 mm. A high efficiency allows an
operating temperature range of –40°C to +85°C at full load.
This product is qualified for soldering in a high temperature lead-free reflow solder
process. Typical applications for the converters are battery operated equipment, instrumentation,
communication and industrial electronics, everywhere where an isolated,
tightly regulated voltage is required.
SMD package
Wide 2:1 input voltage range
I/O isolation 1500VDC
Under voltage lockout
Operating temp. range –40°C to +85°C
Short circuit protection
High accuracy of pin co-planarity
Lead free design – RoHS compliant
3-years product warranty
