TES 3WI Series
£0.00
SKU: TES 3WI
The TES 3WI series is a family of high performance 3W DC/DC-converter modules

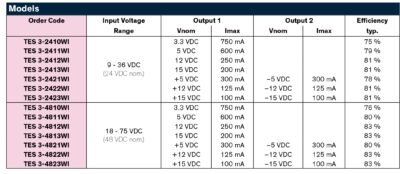

in a low profile SMD package with compact dimensions. The 14 modules
feature ultrawide 4:1 input ranges with tightly regulated output voltage. High
efficiency allows an operating temperature range of –40°C to +70°C at full load.
Further features are built-in EMI-filter to meet EN 55032 conducted class A
without external components and remote On/Off control. The products comply
with IPC J-STD-020E and are qualified for high temperature lead-free reflow
solder process.
• Ultra-wide 4:1 input voltage range
• I/O isolation 1500 VDC
• Operating temp. range –40°C to +70°C
• Short circuit protection
• Input filter to meet EN 55032, conducted class A
• Remote On/Off
• High accuracy of pin co-planarity
• Qualified for leadfree reflow solder process according IPC/JEDEC J-STD-020E
• Available in tape & reel package
• 3-year product warranty
