TES 5 Series
£0.00
SKU: TES 5

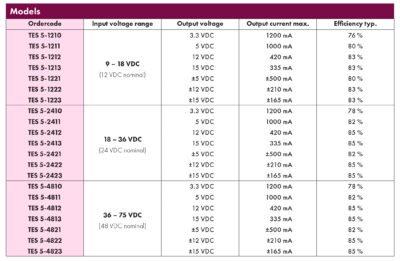

The TES-5 series is a new range of high performance 5W dc-dc converter modules in low profile SMD package with compact dimensions of only 33.4 x 20.6 x 10.2 mm. The 18 available models feature wide 2:1 input voltage range and tightly regulated output voltage. High efficiency allows operating temperatures up to 71°C at full load. Further features are built-in EMI-filter to meet EN 55022,class A and FCC, level A without additional components and remote On/Off control. The products are qualified for soldering in a high temperature lead-free reflow solder process. Typical applications for these converters are battery powered equipment, instrumentation, communication systems and industrial controls.
Compact low profile SMD package
Wide 2:1 input voltage range
I/O isolation 1500VDC
Operating temp. range –40°C to +85°C max.
Short circuit protection
Remote On/Off
High accuracy of pin co-planarity
Lead free design – RoHS compliant
3-years product warranty
