TES1 Series
£0.00
SKU: TES1
With their small footprint these 1 Watt DC/DC converters are an ideal and
economical solution for many applications where an isolated voltage is
required. Typical applications are ground loop elimination, noise reduction,
voltage isolation in digital interfaces and voltage conversion in distributed
power systems. With a new package design these converters are qualified for
the higher temperatures requested by lead-free reflow solder processes. For
automated SMD production lines the devices can be supplied in standard tape
and reel package.
• I/O isolation 1500 VDC
• Unregulated outputs

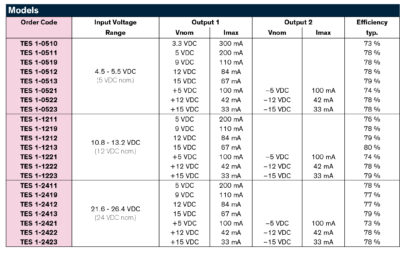

• Single and dual output models
• Input voltage 5, 12 and 24 VDC
• High efficiency up to 80%
• Operating temperature range –40°C to +90°C
• High accuracy of pin co-planarity
• Qualified for leadfree reflow solder process according IPC/JEDEC J-STD-020C
• Available in tape and reel package
• 3-year product warranty
