TES1V Series
£0.00
SKU: TES1V

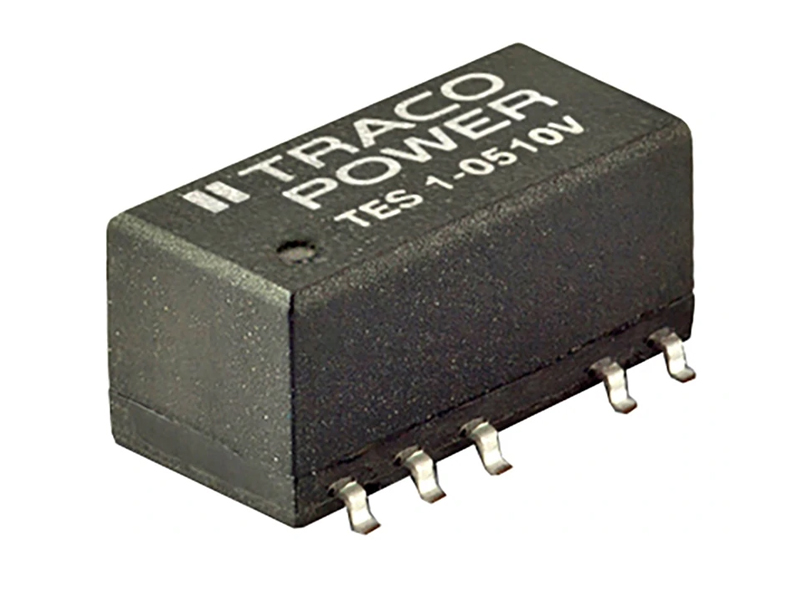

The TES 1V series are miniature, 1W DC/DC-converters with high isolation in a
SMD package. With a new package design these converters are qualified for
the higher temperatures requested by lead-free reflow solder processes. With
the small footprint, these converters are the ideal solution for board level power
distribution, mainly for applications in the industrial- and telecom field. For
automated SMD production lines the devices can be supplied in standard tape
and reel package.
• Small SMD package with standard footprint
• I/O isolation voltage 3000 VDC
• Unregulated outputs

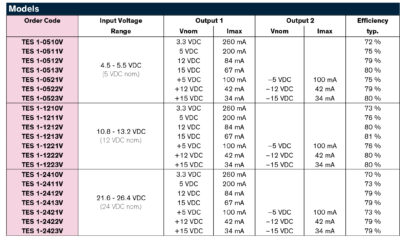

• Single- and dual output models
• High efficiency up to 80%
• Operating temperature range –40°C to +90°C
• High accuracy of pin co-planarity
• Qualified for leadfree reflow solder process according IPC/JEDEC J-STD-020E
• Available in tape and reel package
• 3-year product warranty
