THB 10 Series
£0.00
SKU: THB 10
The THB 10 series is a range of high performance DC/DC converter modules
with double reinforced insulation system. It complies to latest medical safety
standard IEC 60601-1 3rd edition for MOOP (Means of Operator Protection).

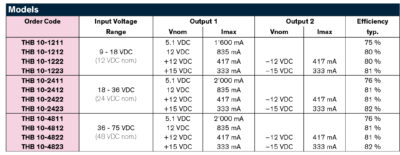

The product comes in a 2”x1” industry standard package. All 12 models
features wide 2:1 input voltage range and fully regulated output voltage. The
converters offer an economical solution for demanding applications in industrial
and medical instrumentation.
• Supplementary and reinforced insulation
• I/O isolation 4000 VAC rms rated for 300 VAC rms working voltage
• 2 x MOOP Medical safety according to AAMI/ANSI ES 60601-1:2005(R) and IEC/EN 60601-1 3rd edition
• Industrial safety to UL/IEC/EN 62368-1
• Wide 2:1 input voltage ranges
• Extended operating temperature range –40°C to 75°C max.
• Input filter meets EN55022, class A
• Continuous short-circuit protection
• High reliability
• 3-year product warranty
