THI 3 Series
£0.00
SKU: THI 3

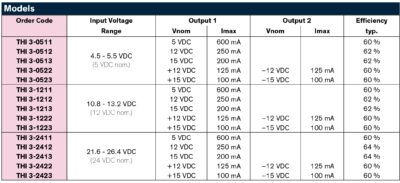

The THI 3 series is a new range of high isolation DC/DC converters with a reinforced insulation system. The I/O- isolation voltage is specified for 4000 VAC rms. The circuit is encapsulated in a DIP-24 package. There are 15 models available for 5, 12 and 24 VDC input voltage and single or dual output voltage. The THI 3 DC/DC converters offer a cost effective solution for applications in industrial controls and medical instrumentation requiring a certified supplementary or reinforced insulation system to comply with industrial or latest medical safety standards.
• Standard DIP-24 Package
• I/O isolation 4000 VACrms rated for 300 VACrms working voltage
• 2 x MOOP Medical safety according to AAMI/ANSI ES 60601-1:2005(R) and IEC/EN 60601-1 3rd edition
• Industrial safety to IEC/EN/UL 62368-1
• Operating temperature range -40°C to 75°C
• Fully regulated output voltage
• Input filter meets EN 55032, class A
• Short circuit protection
• 3-year product warranty
