THL 30WI Series
£0.00
SKU: THL 30WI
The THL 30WI series extends Traco Power’s existing 30 Watt DC/DC converter
portfolio with a new generation of 1” x 1” package converters. With the focus
on combining cost efficiency and quality this isolated high performance 30
Watt DC/DC converter series is suitable for many different applications. The series
comes in an encapsulated, shielded 1” x 1” x 0.4” metal package and offers
integrated remote on/off and trim functions. High efficiency up to 88% enables
the converter to operate from –40°C to +60°C without derating. All models
have a wide 4:1 input voltage range and precisely regulated, isolated outputs.
The series meets the latest IT safety certifications (UL 62368-1) and is suitable
for uses in mobile equipment, instrumentation, distributed power architectures
in communication and industrial electronics and everywhere where
cost efficiency and quality are critical factors.
• 30 Watt converter in a 1” x 1” metal package
• Cost efficient design

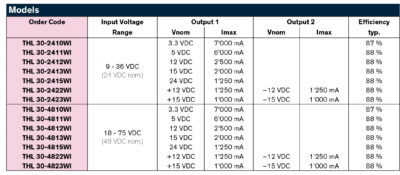

• Wide 4:1 input voltage range: 9-36 and 18-75 VDC
• Operating temperature range -40 to +60 °C without derating
• 1500 VDC I/O-isolation
• Protection against overload, overvoltage and short circuit
• Remote On/Off and Trim function
• Optional heatsink for increased temperature capabilities
• 3-year product warranty
