THM 3 Series
£0.00
SKU: THM 3

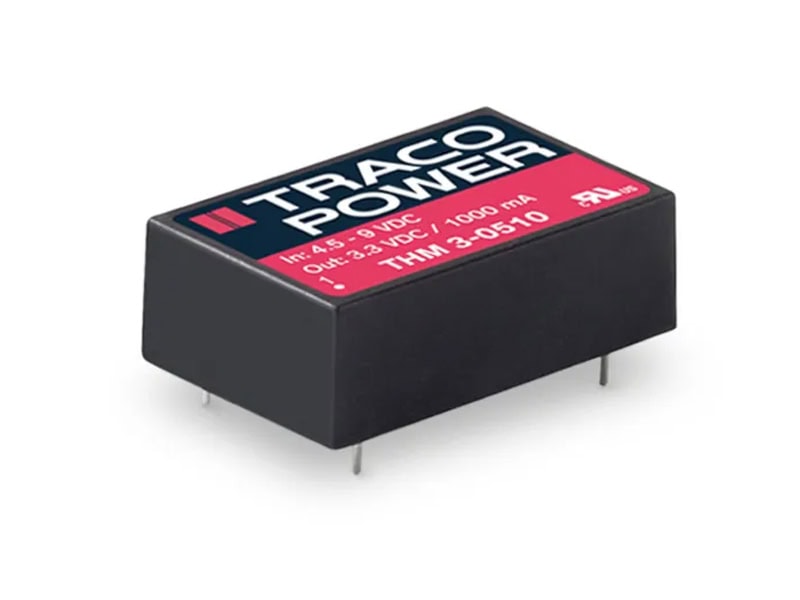

The THM 3 series is a range of medical 3 Watt DC/DC converters in DIP-24 pl-astic package with wide 2:1 input voltage range. They provide a reinforced iso-lation system for 5000 VAC and a very low leakage current of less than 2 µA. The units are approved to IEC/EN/ES 60601-1 ed. 3.2 for 2 x MOPP and come along with an ISO 14971 risk management file. Design and production con-form to the quality management system ISO 13485. With a high efficiency of up to 88% and highest grade components the converters can reliably operate in an ambient temperature range of –40°C up to +90°C. They constitute a reli-able solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.
• Compact DIP-24 plastic case
• I/O isolation 5000 VAC rated for 250 VAC working voltage
• IEC 60601-1 certification edition 3.2 for 2 x MOPP
• Risk management process according to ISO 14971 incl. risk management file
• Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
• Low leakage current <2 μA
• Operating temperature –40°C to 90°C
• EMC compliance to IEC 60601-1-2 4th edition and EN55032 class A
• 5-year product warranty
