THN 15 Series
£0.00
SKU: THN 15
The THN 15 series is the latest generation of high performance DC/DC converter modules setting new standards concerning power density. This product with 15 W comes in a encapsulated, shielded metal package with dimensions of only 1.0" x 1.0" x 0.4" and occupies 50% (!) less board space. All models have wide 2:1 input voltage range and precisely regulated, isolated output voltages. Advanced circuit design provides high efficiency up to 88%which allows an operating temperature range of –40°C to +85°C (with derating). Further features include remote On/Off and trimmable output. Typical applications for these converters are mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on PCB is critical.
• Encapsulated 15 W Converter. Ultra compact size: 1.0" x 1.0" x 0.4"
• Shielded metal case with isolated baseplate

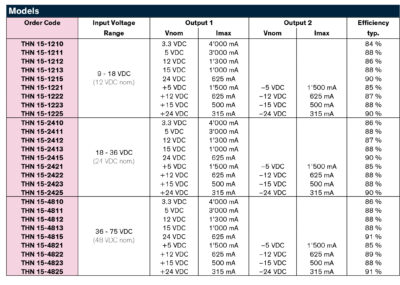

• Wide 2:1 input ranges: 9- 18, 18-36 or 36-75 VDC
• Output voltage Trim
• I/O isolation voltage 1600 VDC
• Very high efficiency up to 88%
• Operating temp. range: – 40°C to +85°C
• Remote On/Off control
• Industry standard pinout
• 3-year product warranty
