THN 20WIR Series
£0.00
SKU: THN 20WIR Series
The THN 20WIR series is a family of ruggedized 20 Watt DC/DC converters for
highest reliability in harsh environments. The converters have a wide 4:1 input
range and increased resistance against electromagnetic interference, shock/vibration
and thermal shock and come in a six-side shielded 1” x 1” metal package.
The innovative design provides high efficiencies up to 91% and thus enable
an operating temperature range from -40 to +65°C without derating. The
approvals according to standards EN 50155 and EN 61373 qualify them for railway
and transportation systems. Additional qualification for the fire behavior of
components according to EN 45545-2 and the safety approval according IEC/-
EN 62368-1, UL62368-1 support a potential compliance test of the application.
Built-in features like an internal EN 55032 class A filter, input under- voltage-
lockout, short circuit protection, remote On/Off and output voltage trim
make this series suitable for almost any application demands and thus facilitate
the design-in process.
• Compact 1” x 1” metal package
• EN 50155 and EN 61373 approval for railway applications
• Qualification for fire behavior according to EN 45545-2

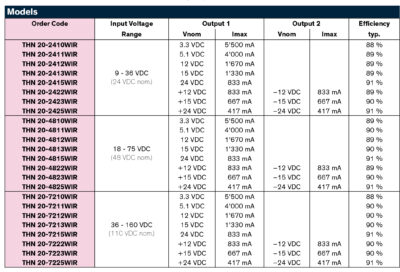

• Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC
• Operating temperature range -40 to
+65 °C without derating
• High efficiency up to 91%
• 3000 VDC I/O-isolation
• Protection against overload, overvoltage and short circuit
• Remote On/Off and Trim function
• 3-year product warranty
