THN 30WIR Series
£0.00
SKU: THN 30WIR Series
The THN 30WIR is a series of DC/DC converters designed for highest reliability
in harsh environments. With an output power of 30 Watts, this series expands
our portfolio of EN 50155 railway certified wide input voltage range 1”x1"
DC/DC converters. The THN 30WIR is shielded by a metal enclosure on all six
sides for lowest susceptibility to electromagnetic interference. Its full
encapsulation guarantees highest resistance to thermal shocks as well as
mechanical shocks and vibration. Thanks to its power conversion efficiency of
up to 92%, the THN 30WIR can operate at ambient temperatures between
-40°C and +65°C without derating and without the need for additional cooling
(depending on the model). The THN 30WIR is EN 61373 certified for
mechanical shock and vibration and EN 45545-2 certified for fire behavior. It
comes with IEC/EN/UL 62368-1 safety approvals.
• Encapsulated in 1”x1” metal package
• EN 50155 and EN 61373 certified

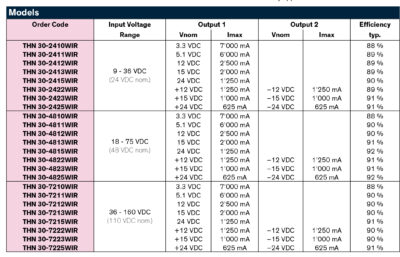

• Wide 4:1 input voltage range: 9-36, 18-75, 36-160 VDC
• -40°C up to +65°C without derating
• Up to 92% efficiency
• Up to 3000 VDC I/O-isolation
• EN 45545-2 fire behavior
• Remote on/off and trim function
• Undervoltage lockout (UVLO), short-circuit protection (SCP), overvoltage protection (OVP) and overtemperature protection (OTP)
• 3-year product warranty
