THR 20WI Series
£0.00
SKU: THR 20WI Series
The THR 20WI is 20 Watt DC/DC converters series with reinforced isolation (3-
000 VAC). These regulated DC/DC converters come in either a 2"x1" package
and also feature increased resistance against shock and vibration according to
EN 61373. The THR 20WI offers an internal input filter to comply with EN 550-
32 class A. High efficiencies up to 88% allow safe operation from –40°C to
+80°C (with derating). All models have a wide 4:1 input voltage range and precisely
regulated, isolated output voltages. With the latest IT safety certifications
(IEC/EN/UL 62368-1) the THR 20WI series is the perfect choice for many demanding
applications in the industrial, transportation and instrumentation sectors
• Reinforced I/O-isolation 3000 VAC
• Shock and vibration resistance according to EN 61373

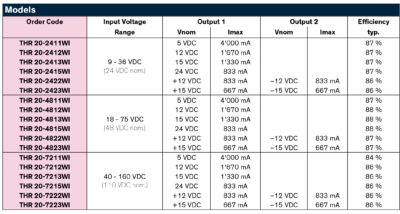

• Wide 4:1 input voltage range: 9-36, 18-75, 40-160 VDC
• Operating temperature range -40 to +85°C
• Internal EN 55032 class A filter
• High efficiency up to 88%
• Protection against overload, overvoltage and short circuit
• 3-year product warranty
