TIM 2SM Series
£0.00
SKU: TIM 2SM

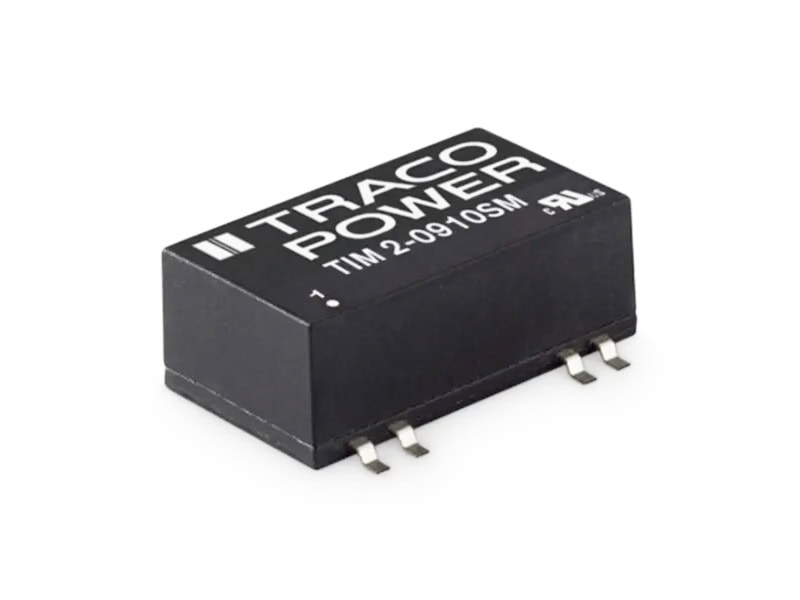

The TIM 2SM series is a range of 2 Watt DC/DC converters in compact SMD
package and with reinforced isolation of 5000 VACrms for medical
applications. With a low leakage current of less than 2 μA the converters are
predestined to insulate electrical equipment from the applied parts to patient
(BF classification). The models are approved to IEC/EN/ES 60601-1 edition
3.2 for 2xMOPP up to an altitude of 5000m and come along with an ISO
14971 risk management file.
• Compact SMD-16-package
• I/O isolation 5000 VAC rated for 250 VAC working voltage
• Certification according to IEC/EN/ES 60601-1 edition 3.2 for 2xMOPP and operation up to 5000 m altitude
• Low leakage current < 2 μA
• Extended operating temperature range –40°C to 95°C.
• 5-year product warranty
