TMDC20 Series
£0.00
SKU: TMDC20
The TMDC 20 Series is a range of encapsulated high performance DC/DC
converter modules. With a very high efficiency of up to 91% and the use of
highest grade components these 20 W converters are made for a reliable
operation in the temperature range of -40°C up to 90°C. They come in chassis

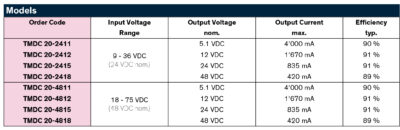

mount version with screw terminal block. The 8 models have a wide 4:1 input
voltage range and a tight output voltage regulation. They do not need a
minimum load and offer a high efficiency also at low load conditions. They
feature a remote control input and a green power good LED which indicates
the presence of the output voltage. Protection against overload and short
circuit are standard features of these converters. EMC characteristics and
safety certifications are aligned for the operation in industrial environment.
• Ultra wide 4:1 input voltage range• Operating temperature range –40°C to +90°C
• I/O isolation 2500 VDC
• Excellent efficiency up to 91 %
• Input filter to meet EN 55022, class A
• Optional DIN-Rail mount adapter
• No minimum load required
• Power good LED indicator and remote on/off function
• 3-year product warranty
