TMP, TMPM Series
£0.00
SKU: TMP TMPM Series
The TMP & TMPM series AC/DC Power Modules is a new range of fully encapsulated power supplies in an ultra-compact casing. They feature easy chassis mounting with screw terminal block connection or direct PCB mounting with solder pins.
Full compliance with International safety standards for industrial control equipment qualifies the products for worldwide markets.
These power supplies offer a cost effective solution for many space critical applications in commercial and industrial electronic equipment and for polluted and dusty environment.
Ultra compact, low profile plastic casing
Fully encapsulated (pollution/dust)

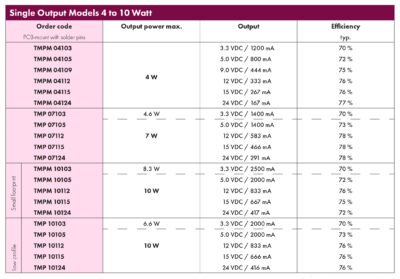

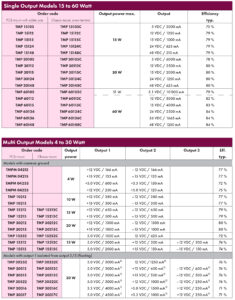

Single-, dual- and triple output models
2 standard package versions:
- Screw terminal block for chassis mount
- Solder pins for direct PCB mount
- Optional pin-connector on request
DIN-rail mount adaptor (optional)
Universal input 85-264 VAC, 47-440 Hz
Protection class ll
IEC/EN/UL 62368-1 approval, CB-report
Over-temperature protection
Protection against short circuit and overload
3-year product warranty
