TMR 10WIR Series
£0.00
SKU: TMR 10WIR Series
The TMR 10WIR series is a family of ruggedized 10 Watt DC/DC converters for
highest reliability in harsh environments. The converters have a wide 4:1 input
range and increased resistance against electromagnetic interference,
shock/vibration and thermal shock and come in a SIP-8 metal package. The
innovative design provides high efficiencies up to 89% and thus enable an
operating temperature range from -40 up to +75°C without derating. The
approvals according to standards EN 50155 and EN 61373 qualify them for
railway and transportation systems. Additional qualification for the fire behavior
of components according to EN 45545-2 and the safety approval according
IEC/- EN62368-1, UL62368-1 support a potential compliance test of the
application. Built-in features like input under-voltage-lockout, short circuit
protection and remote On/Off make this series suitable for almost any
application demands and thus facilitate the design-in process.
• Compact SIP-8 metal case
• EN 50155 and EN 61373 approval for railway applications
• Qualification for fire behavior according to EN 45545-2

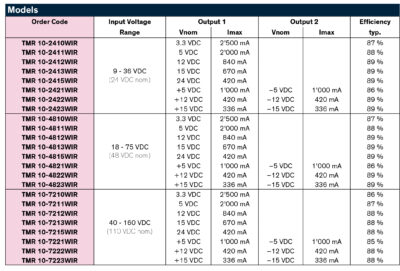

• Wide 4:1 input voltage: 9-36, 18-75, 36-160 VDC
• Operating temperature range -40 to +75 °C without derating
• High efficiency up to 89%
• 3000 VDC I/O-isolation
• Protection against overload, and short circuit
• Remote On/Off function
• 3-year product warranty
