TMR 4 Series
£0.00
SKU: TMR 4 Series

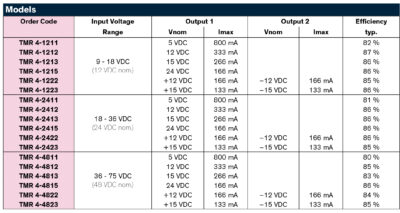

The TMR 4 is a regulated 4 Watt DC/DC converter series with 2:1 input voltage
range. It comes in a compact SIP-8 package featuring single and dual output
models, I/O isolation voltage of 1600 VDC and protection against short-circuit
and over load. Being a 4 Watt converter this series acts as an excellent gap closer
between the more common 3 & 6 Watt converters. It offers a cost-efficient
alternative to 5 and 6 Watt converters in applications where a 3 Watt converter
would operate at the absolute technical limits (e.g. output power). The intelligent
design provides efficiencies up to 87% and a temperature range of -40°C
to +70°C without derating which enables an unrestricted use of this converter
series in applications with demanding temperature requirements. Additionally,
the integrated remote On/Off function offers a convenient way to control your
application. Certified according to the latest IEC/EN/UL 62368-1 industrial standard
the TMR 4 is designed to deliver a high quality, cost efficient and compact
solution for many applications.
• Compact SIP-8 package
• Wide 2:1 input voltage range
• Temperature range –40° to +70°C
without derating
• High efficiency up to 87%
• I/O isolation 1600 VDC
• Protection against short-circuit and over load
• Fully regulated outputs
• Remote On/Off control
• 3-year product warranty
