TMU 3 Series
£0.00
SKU: TMU 3 Series
The TMU 3 series consists of a set of isolated 3 Watt DC/DC converters with
unregulated outputs in a standard SIP-4 package. They are designed to offer a
compact low-cost alternative to regulated series with no concession on quality
and lifetime. They feature a continuous short circuit protection circuit,
I/O-isolation of 1500 VDC and an operating temperature range from –40°C to
75°C without derating. The compact dimensions of these converters make
them an ideal solution for many space critical applications in communication
equipment, instrumentation and industrial electronics.
• Compact 3 Watt converter in SIP-4 package
• Continuous short circuit protection
• Unregulated outputs
• Operating temperature range -40 to +75 °C without derating
• I/O isolation: 1’500 VDC

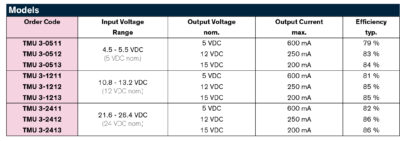

• Input voltage ranges (±10%): 5, 12, 24 VDC
• High efficiency up to 86%
• 3-year product warranty
