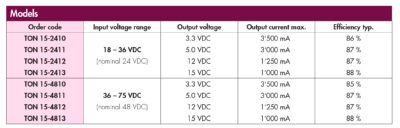

TON 15 Series
£0.00
SKU: TON 15
The TON-15 series is a new generation of high performance 15W dc-dc converters
with wide input voltage range and precisely regulated output voltage. The ultra
compact open frame design with industry standard pin-out provides the designer
now a 50% smaller, cost efficient alternative to existing 10 to 15W converters in
the market. Built-in filters for both input and output minimize the need for external
filtering.
Further features include remote On/Off, output voltage trimming, over voltage
protection and short circuit protection. Typical applications are distributed power
systems, instrumentation and industrial electronics, everywhere where space on the
PCB is a critical factor.
◆ Ultra compact 15W converter
◆ Cost efficient open frame design with industry standard pin-out
◆ Surface-mount (SM) and through-hole version
◆ I/O isolation voltage 2250V, rated for basic insulation
◆ Extended operating temperature range –40°C to +85°C
◆ Remote On/Off
◆ Under voltage lockout
◆ Lead free design, RoHS compliant
◆ 3-years product warranty
