TEP75WI
£0.00
SKU: TEP75WI
75W half brick module, 9V to 160V in 3 x 4:1 input range, single outputs of 5V to 48V DC
The TRACO TEP-75WI Series is a family of isolated high performance DC/DC converter modules with ultra-wide 4:1 input voltage ranges packaged in a rugged, sealed metal case.
These converters are suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple.
For easy connection there is a unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating.
Further features include output voltage trimming, Remote On/Off and under voltage lockout. The very wide input voltage range and reverse input voltage protection also make these converters an interesting solution for battery operated systems.
75 Watts; Industry Standard Half Brick Footprint; Ultra Wide 4:1 24V or 48V DC Input; Single 5V; 12V; 15V; 24V; 28V or 48V DC Outputs

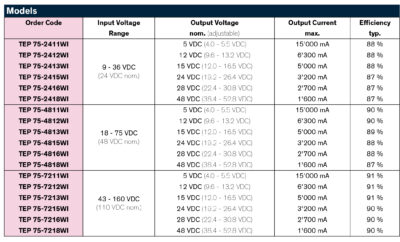

TEP75-2411WI TEP75-2412WI TEP75-2413WI TEP75-2415WI TEP75-2416WI TEP75-2418WI TEP75-4811WI TEP75-4812WI TEP75-4813WI TEP75-4815WI TEP75-4816WI TEP75-4818WI
