TRI 10 Series
£0.00
SKU: TRI 10 Series
The new TRI 10 is a high isolation, regulated 10 Watt DC/DC converter series
which comes in a compact DIP-24 package. The core characteristic of the TRI
10 series is a sophisticated reinforced isolation system which is able to
withstand high test voltages (9000 VDC for 1s and 5000 VAC for 60s) and
working voltages (1000 VACrms). Complementing this isolation characteristic is
a high Common Mode Transient Immunity of 15 kV/μs. The new design allows
to fully integrate an EN 55032 class A filter and greatly reduces the no-load
power consumption. High efficiencies up to 88% allow safe operation from
–40°C to +65°C without derating and up to +85°C with derating. All models

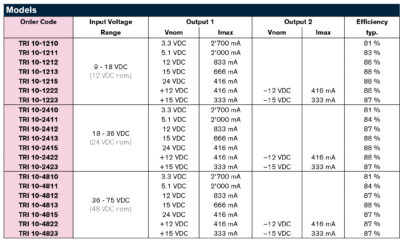

have a wide 2:1 input voltage range and precisely regulated, isolated output
voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the TRI
10 series is the perfect choice for many demanding applications in the
industrial, transportation and instrumentation sectors.
• Reinforced I/O-isolation 5000 VAC rated for 1000 VAC working voltage
• Ultra-high isolation peak voltage 9000 VDC (1s)
• Common Mode Transient Immunity (dv/dt) 15 kV/μs
• Operating temperature range -40 to +85°C
• Low no-load power consumption 144 – 288 mW
• Internal EN 55032 class A filter
• High efficiency up to 88%
• 2:1 input voltage range: 9-18, 18-36, 36-75 VDC
• Protection against overload, overvoltage and short circuit
• 3-year product warranty
