TRI 1SM Series
£0.00
SKU: TRI 1SM Series
The new TRI 1SM is a high isolation, unregulated DC/DC converter series
which comes in a compact SMD-14 package. The core characteristic of the TRI
1SM series is a sophisticated reinforced isolation system which is able to
withstand high test voltages (8000 VDC for 1s and 3000 VAC for 60s) and
working voltages (480 VACrms). Efficiencies up to 84% allow safe operation
from –40°C to +85°C without derating. All models have a ±10% input voltage
range and precisely regulated, isolated output voltages. With the latest IT safety
certifications (IEC/EN/UL 62368-1) the TRI 1SM series is the perfect choice for
many demanding low power applications in the industrial, transportation and
instrumentation sectors.
• Reinforced I/O-isolation 3000 VAC rated for 480 VAC working voltage
• Ultra-high isolation peak voltage 8000 VDC (1s)
• Operating temperature range -40 to +85°C without derating
• High efficiency up to 84%

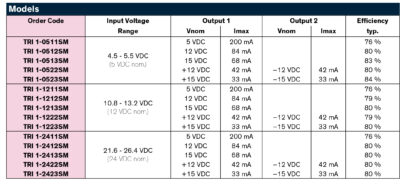

• Input voltage range (±10%): 5, 12, 24 VDC
• Protection against overvoltage and short circuit
• 3-year product warranty
