TRN 3SM Series
£0.00
SKU: TRN 3SM
The TRN 3SM Series comprises 3 Watt fully regulated, high performance
DC/DC converters. They come in a compact cubical package of only 1.07 cm³.
Full load operation is reliable up to 65°C environment temperature. With 1’600
VDC I/O-isolation voltage, and short current protection they cover a wide range
of application when space is limited. The input of the converters is designed for
a wide voltage range (2:1) and minimum load is not required. The functional
I/O-isolation system is designed to meet IEC/EN/UL 62368-1 (not certified)
with a test voltage (60 s) of 1600 VDC.
• Compact SMD package 11,9 x 11,3 x 8,0 mm
• Fully regulated outputs

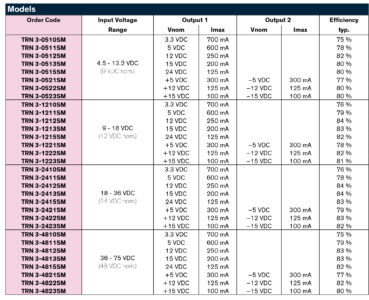

• Input Voltage range 4.5-13.2, 9-18, 18-36, 36-75 VDC
• I/O-isolation 1‘600 VDC
• Operating temperature range –40°C to +85°C
• Short circuit protection
• Designed to meet IEC/EN/UL 62368-1 (not certified)
• 3-year product warranty
