TRV 1M Series
£0.00
SKU: TRV 1M Series
The TRV 1M is a series of 1 Watt DC/DC converters in a compact SIP-9
package with reinforced isolation of 5000 VAC for medical and industrial
applications. The series offers models with different input voltages (±10%)
between 5 and 24 VDC. With a continuous short circuit protection and a low
leakage current of less than 2 μA, this converter series is especially suited to
protect any connected interfaces or applied parts to patients. Together with an
operating temperature range from -40 to +95°C without derating and
certifications according to IEC/EN/ES 60601-1 ed. 3.2 for 2xMOPP and
IEC/EN/UL 62368-1 this series is suitable for many different applications
where a medical isolation system and short circuit protection is needed.
• I/O isolation 5000 VAC (reinforced)
• Short circuit protection
• Unregulated outputs

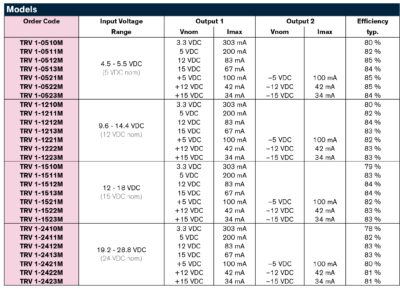

• Input voltage ranges (±10%): 5, 12, 15, 24 VDC
• Operating temperature range -40 to +95 °C without derating
• Certification according to IEC/EN/ES 60601-1 edition 3.2 for 2xMOPP and IEC/EN/UL 62368-1
• Low leakage current < 2 μA
• Efficiency up to 85%
• Operation up to 5000 m altitude
• 5-year product warranty
