TRV 2M Series
£0.00
SKU: TRV 2M Series

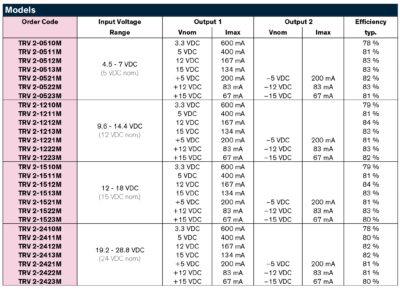

The TRV 2M is a series of 2 Watt DC/DC converters in a compact SIP-9 package
with reinforced isolation of 5000 VAC for medical and industrial applications.
The series offers a 1.5:1 input voltage range with a nominal input ranging
between 5 and 24 VDC. With a continuous short circuit protection and a low
leakage current of less than 2 μA, this converter is especially suited to protect
any connected interfaces or applied parts to patients. Featuring almost fully regulated
outputs this series provides great level of regulation without affecting
the cost efficiency. It is an ideal solution for applications where an unregulated
DC/DC converter would not meet your regulation requirements but cost still is a
critical factor. With an operating temperature range from -40 to +80°C without
derating and certifications acc. IEC/EN/ES 60601-1 ed. 3.2 for 2xMOPP and
IEC/EN/UL 62368-1 this series is suitable for many different applications where
a medical isolation system and short circuit protection is needed.
• I/O isolation 5000 VAC (reinforced)
• Wide 1.5:1 input voltage range
• Operating temperature range -40 to +80 °C without derating
• Certification according to IEC/EN/ES 60601-1 edition 3.2 for 2xMOPP and IEC/EN/UL 62368-1
• Short circuit protection
• Regulated outputs
• Low leakage current < 2 μA
• Efficiency up to 84 %
• Operation up to 5000 m altitude
• 5-year product warranty
