TSR-3N Series
£0.00
SKU: TSR-3N Series
The TSR 3N is a 3 Amp step-down switching regulator series and a drop-in replacement
for any TO-220 package linear regulators. It comes in a compact SIP-
3 plastic package and complements our new generation of POL converters
focusing strongly on a cost-efficient design while also improving on critical electrical

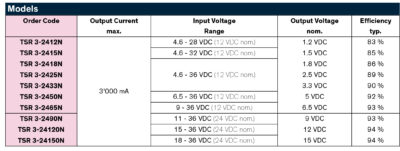

specifications. The Input ranges from 4.6 to 36 VDC and output voltages
are available between 1.2 and 15VDC. Depending on the model, the efficient
design allows full load operation up to +90°C ambient temperature (at nominal
Vin) without the need of any heat sink or forced cooling. The TSR 3N series provides
other significant features like short circuit protection, current limitation
and under voltage lockout. Overall, it offers a broad application range in many
environments and is especially suited for high volume projects where the series
will help to reduce production cost by delivering not only a highly cost efficient
but also reliable solution.
• Highly cost-efficient design
• Compact SIP-3 package: 14 x 7.6 x 10.2 mm
• Pin compatible with TO-220 package linear regulators
• Excellent thermal capabilities
• Operation temperature. range –40°C to +90°C
• Efficiency up to 95%
• Wide input operating range 4.6-36 VDC
• Short circuit protection, current limitation and under voltage lockout features
• Excellent line / load regulation
• 3-year product warranty
