TSR0.6WI Series
£0.00
SKU: TSR0.6WI Series

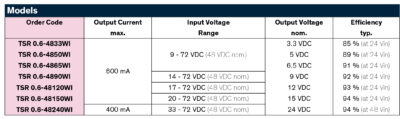

The TSR 0.6WI is a non-isolated POL converter series with an ultra wide 8:1 input
voltage range which comes in a standard SIP-3 package. Covering the majority
of standard bus- and battery voltages this POL converter is a versatile solution
for many applications in distributed power systems where different input
voltages have to be handled. Being able to use the same converter in many different
situations effectively reduces the bill of material (BOM) of a given application.
A high efficiency of up to 94% allows for an operating temperature range
of -40 to +85°C (up to 80°C without derating) and makes them excellent drop-
in replacements for less efficient LMxx linear regulators. With 0.6A max. output
current and standard features such as low standby current, precise regulation
and protection against short circuit, overvoltage and overload the TSR 0.6-WI
is suitable for many battery and distributed power applications.
• Ultra wide 8:1 input voltage range: 9-72 VDC
• Covers a majority of standard bus- and battery voltages
• Up to 94% efficiency - No heatsink required
• Pin compatible with LMxx linear regulators (SIP-3)
• Operating temperature range -40 to +85°C
• Low standby current
• Excellent line/load regulation
• Protection against short circuit, overvoltage and overtemperature
• 3-year product warranty
