TVN 3 Series
£0.00
SKU: TVN 3
The TVN 3 Series comprises ultra low ripple and noise 3 Watt DC/DC converters. They come in a compact SIP-8 package with fully regulated outputs. Apart from the standard 2:1 input voltage range, the low input voltage models feature an extended input voltage range from 4.5-13.2 VDC (3:1). Full load operation is reliable up to 75°C environment temperature without derating and up to 90°C with 50% derating. With 1’600 VDC I/O-isolation voltage, and short current protection they cover a wide range of applications when space is limited.
• Ultra low ripple and noise 10mVp-p typ.
• Compact SIP-8 package

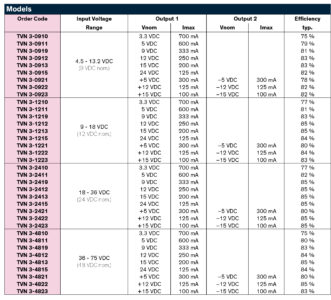

• Input Voltage range 4.5-13.2, 9-18, 18- 36, 36-75 VDC
• I/O isolation 1600 VDC
• Operating temperature range -40 to + 75°C without derating
• Fully regulated outputs
• Short circuit protection
• 3-year product warranty
