WJ Series HV AC-DC
£0.00
SKU: WJ Series HV AC-DC

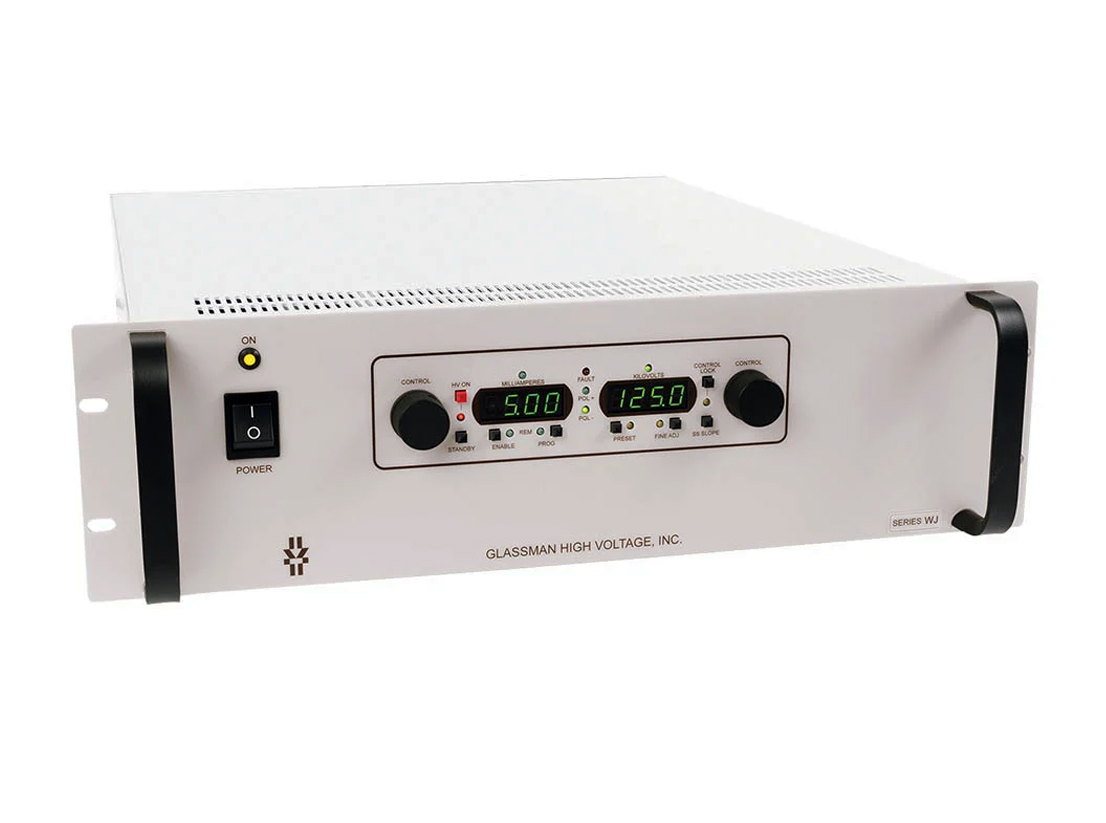

The 600W WJ series is a high quality, high performance, high reliability & high stability high
voltage power supply with low ripple & noise, being air insulated it facilitates a lower cost
of ownership, as well as being lighter compared to competing products & though various
output control options, input voltages, low output discharge currents makes integrating this
power supply into a new system or tool simple.
It has been designed for electrical design engineers & system integration engineers in a wide
range of industries including Ion implant, E-beam welding & E-beam additive manufacturing
& many other application specific markets who are challenged with limited high voltage
integration experience & tight timelines.
Output voltages 0-70kVDC to 0-125kVDC
3U 19" rack mount
RS232/USB control & monitor standard, Ethernet is optional
Output voltage & current regulated
Low ripple <0.03% RMS of rated voltage at full load
Voltage & current monitor outputs
Single phase AC input
Efficiency >85%
Air Insulated
Short circuit, arc & overload protection
CE marked for EMC, low voltage (LVD) & RoHS directives
Operating temperature: -20°C to +40°C
3 year warranty
