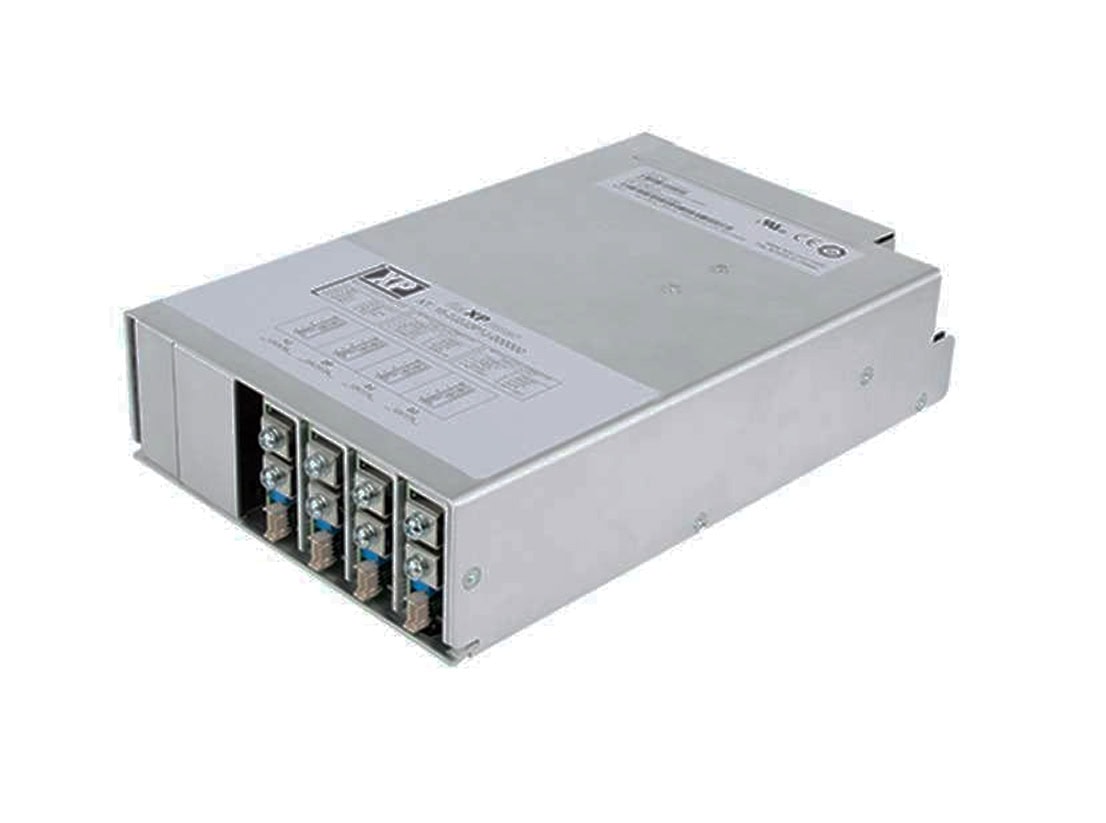

XT16 fleXPower Series
£0.00
SKU: XT16 fleXPower Series
The 3 phase XT16 fleXPower series is a modular power supply which can be configured into
a bespoke solution for quick delivery of samples, prototypes and low volume production with
up to 1600 Watts of output power. Configurations may comprise up to 7 modules chosen
from 44 single output modules and 16 dual output modules ranging from 3.3V at 66W to
60V at 750W. Modules may be combined in series or parallel to create a single output at
the chassis power rating. Modules of unlike power can be paralleled and will current share
within 10%. Opto-isolation of control and monitoring signals provides further configuration
flexibility, including a global Inhibit/Enable function. A continuous 5V/2A housekeeping
output is present when the AC supply is active.
XT16 fleXPower consists of a chassis in which there are 14 slots, allowing for up to 7
individual outputs. A single phase input version is available, see fleXPower datasheet for
details.
• 3 phase input
• 342 to 528VAC input
• Configurable for fast time to market
• SEMI F47 compliant
• Flexible series and parallel capability
• -20°C operation
• Fan speed control
• 3 year warranty
