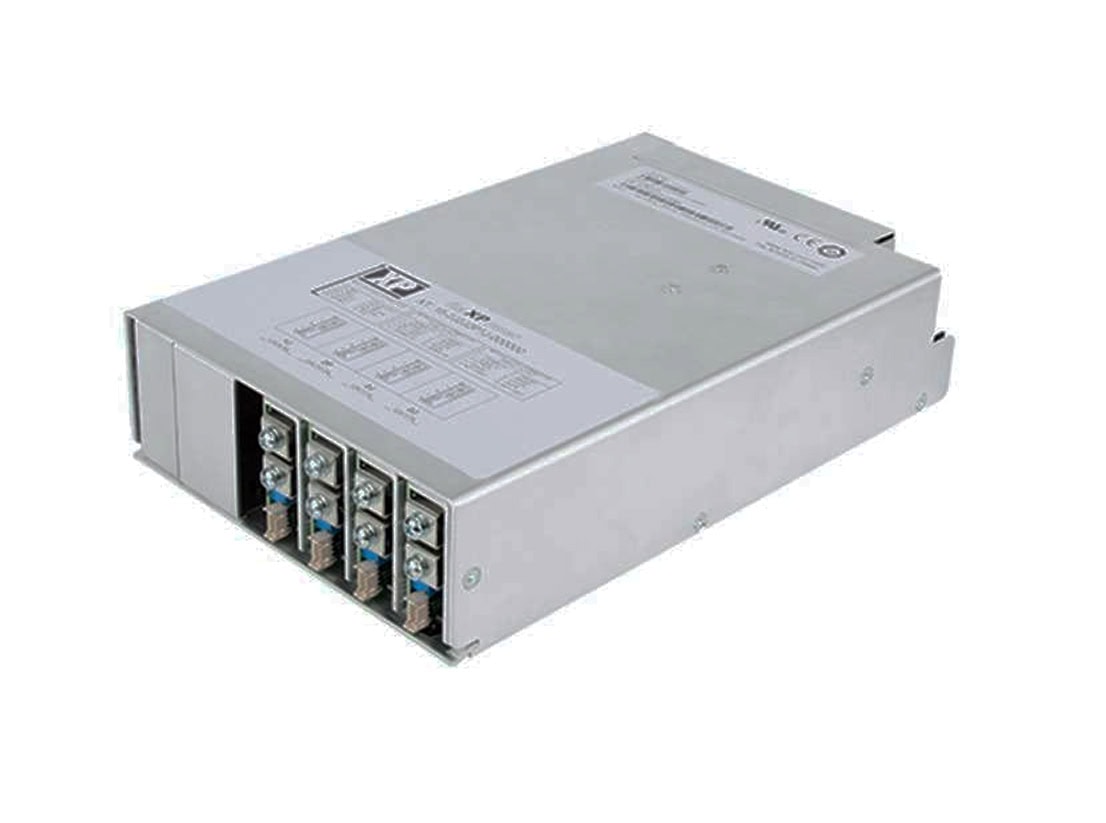

XTL15 fleXPower Series
£0.00
SKU: XTL15 fleXPower
The 3 phase XTL15 fleXPower series is a modular power supply which can be configured into
a bespoke solution for quick delivery of samples, prototypes and low volume production with
up to 1500 Watts of output power. Configurations may comprise up to 7 modules chosen
from 44 single output modules and 16 dual output modules ranging from 3.3V at 66W to
60V at 750W. Modules may be combined in series or parallel to create a single output at
the chassis power rating. Modules of unlike power can be paralleled and will current share
within 10%. Opto-isolation of control and monitoring signals provides further configuration
flexibility, including a global Inhibit/Enable function. A continuous 5V/2A housekeeping
output is present when the AC supply is active.
XTL15 fleXPower consists of a chassis in which there are 14 slots, allowing for up to 7
individual modules. All models have EN62368-1 and UL62368 approvals. A single phase input
version is available, see fleXPower datasheet for details.
• Configurable for fast time to market
• Flexible series and parallel capability
• EN62368-1 and UL62368 safety approvals
• 3 phase input 180 to 264VAC
• 1-14 outputs
• Variable speed fan (optional)
• Fully featured signals and controls
• SEMI F47 compliant
• -20°C to +70°C operating temperature
• 3 year warranty
