XTL30 fleXPower Series
£0.00
SKU: XTL30 fleXPower

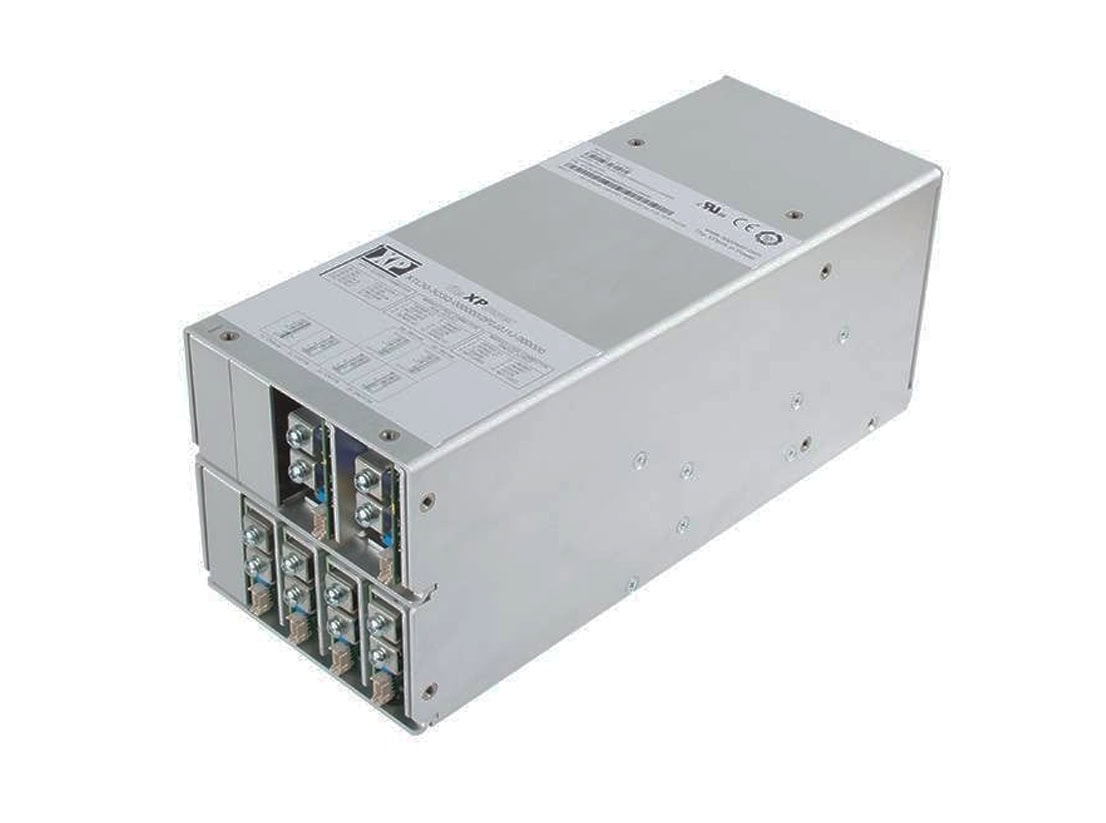

The 3 phase XTL30 fleXPower series is a modular power supply which can be configured into
a bespoke solution for quick delivery of samples, prototypes and low volume production with
up to 3000 Watts of output power. Configurations may comprise of up to 7 modules chosen
from 44 single output modules and 16 dual output modules ranging from 3.3V at 66W to 60V
at 750W. Modules may be combined in series or parallel to create a single output at the chassis
power rating. Modules of unlike power can be paralleled and will current share within 10%.
Opto-isolation of control and monitoring signals provides further configuration flexibility,
including a global Inhibit/Enable function. A continuous 5V/2A housekeeping output is present
when the AC supply is active. The XTL30 fleXPower consists of a chassis in which there are
20 slots, allowing for up to 10 individual modules A single phase input version is available, see
fleXPower datasheet for details.
• Configurable for fast time to market
• Flexible series and parallel capability
• EN62368-1 and UL62368 safety approvals
• 3 phase input 180 to 264VAC
• 1-20 outputs
• Variable speed fan (optional)
• Fully featured signals and controls
• SEMI F47 compliant
• -20°C to +70°C operating temperature
• 3 year warranty
