YDC60 SERIES Battery Backed
£0.00
SKU: YDC60 SERIES Battery Backed

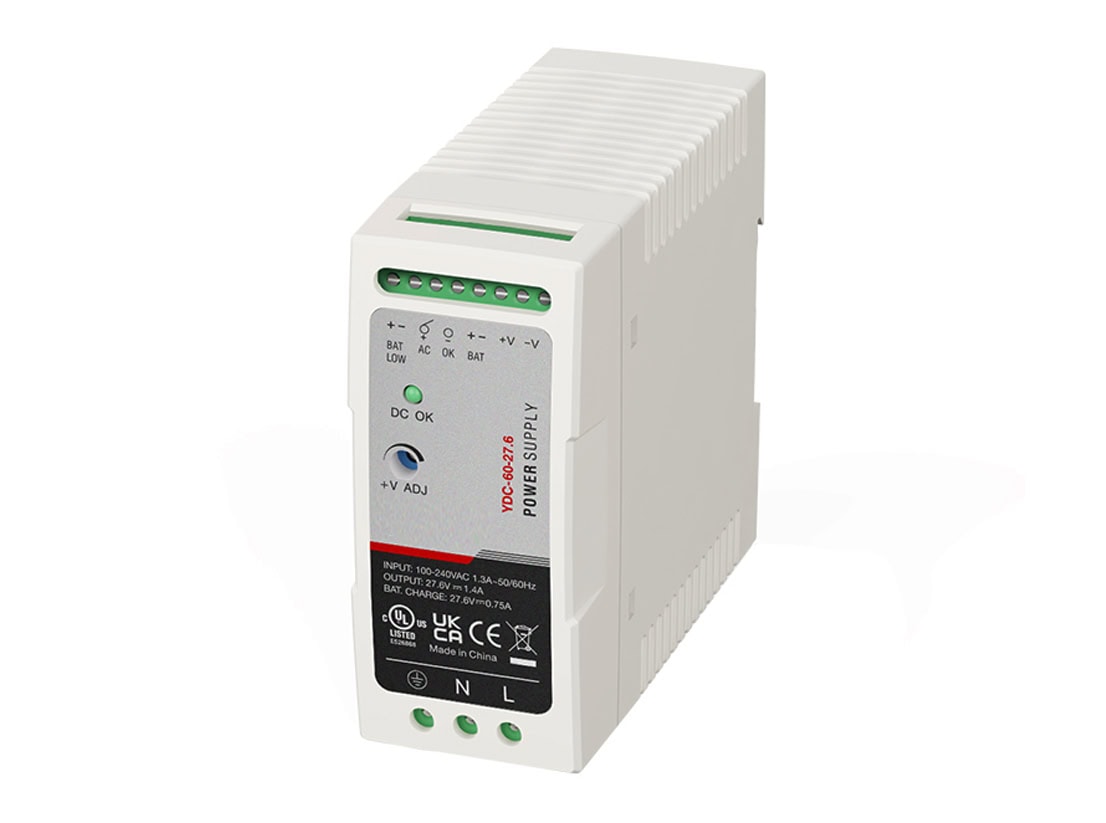

The YDC60 Series is a range of 60W battery backed DIN Rail power supplies available with nominal 12V or 24V DC outputs for 12V or 24V battery Systems.
The AC/DC DIN rail type security power are
designed with slim plastic housing and for full range AC
input from 90V AC to 264V AC and supplies 13.8VDC
and 27.6VDC at output, respectively. They have high
efficiency and operate in wide temperature range.
In addition to the key protection features such as overload
protection, over voltage protection, battery low cut off, and
battery reverse polarity protection (by fuse). the alarm
signal for AC OK and battery low signalling, is provided via
TTL open collector output for the standard model (via
relay contact output as the optional model), to facilitate
the system design.
