A smart charger for NiMH and NiCD batteries from Powersolve will auto detect and charge 8 to 15 cells in series and charge them at the correct voltage between 9.6V and 18VDC. The PSCH30 charger operates from a universal 90 to 264VAC and incorporates several safety features including automatic cut-off when the cells are fully charged and battery over-temperature protection using a thermal sensor. Over voltage and short circuit protection are also standard. A switch allows users to select the charge current between 0.9A to 1.8A while charging status is

Powersolve has what is said to be the world’s first SIP-8 packaged DC/DC converter series to provide an isolated and regulated output voltage with up to 9W of output power.

Models in the Tracopower TMR9 series are available with 2:1 (TMR 9) or 4:1 (TMR 9WI) input ranges and cover nominal inputs of 12V, 24V and 48V DC. Single and dual output voltages of 3.3V to 24V DC are available within the range.

The converters feature a 50% higher power density compared to conventional SIP converters and can reliably operate up to

The TMDC series is a range of fully encapsulated low profile DC/DC-converter modules just made available by Powersolve. The modules feature ultra-wide input voltage ranges of 9 to 36VDC and 18 to 75VDC and are available with fixed 5.1, 12, 24 and 48 VDC output voltages in 20, 40 or 60W ranges.

As standard, the modules are designed for chassis mounting with a screw terminal block although an optional bracket allows for DIN-rail mounting. With a very high efficiency of up to 91% and the use of high grade components, the

Our PIN Series of CE marked, 3 stage 12 and 24V Lead Acid battery chargers are conveniently packaged in a compact desk-top enclosure (153 x 60 x 36.5mm).

PIN Series Lead Acid chargers feature output power of 58W and charging currents of 4A (12V model) and 2A (24V model) and incorporate a variety of safety features including fused input protection as well as protection against overload and short circuit.

The chargers operate from a universal 90 to 264VAC input and feature a no load power consumption of just 0.5W. Charging status is

The ESB101 Series is a low cost peak inrush current limiter for capacitive loads in complex automation systems and machinery. It provides high reliability and interference free operation. This is not a simple NTC solution and operates as a real current limiter and cuts off all peak currents when starting consumer loads.

It is fitted with an internal temperature fuse to prevent overheating in the event of failure of the internal bypass circuit. The ESB101 is designed for use in automation systems and machinery which is in constant use.

Extreme conditions can

Our new family of encapsulated AC-DC switch mode power supplies has been designed specifically for harsh environments. Typically these will include Security, CCTV and LED installations. For maximum applications flexibility, all units can be wall or chassis mounted and can be supplied with a wide variety of input and output cable lengths and connectors to suit the customer’s specific requirements.

Between them the, fully encapsulated, PS12/20/36MK series units provide between 10 and 36W output power at voltages from 5V to 24V DC. They operate from a wide input voltage range of

We have announced a series of Sine Wave DC/AC inverters that provides between 1000 and 4500VA from a DC input between 40 to 60VDC. This makes them ideal for 48VDC – based telecoms systems.

There is a total of five models in the PJN Series each designed around the latest high efficiency Sinusoidal PWM (SPWM) inversion technology and all incorporating an energy-saving ECO working mode. All five models provide 230VAC ±2% (±15% in ECO Mode) and offer power outputs of 1000, 1500, 2000, 3000 or 4500VA. Output frequency is 50Hz ±0.5%.

We have just announced a desk-top “mini” uninterruptible power supply (UPS) that provides back-up power in the event of an AC mains failure. The compact PUPS22 & PUPS44 UPS’s works from a 12VDC input using any approved 12V AC-DC plug-top charger capable of powering the load and with enough output power to charge the internal batteries. Powersolve’s ESA24-12 or ESA36-12 plug-top chargers are a good example.

Both models are perfect for powering networking devices such as routers or other low power devices should the mains be interrupted. The UPS incorporates the

The new PSS60 Series power adaptor from Powersolve meets CEC level VI, features universal AC Input, conforms to RoHS and includes interchangeable AC plugs for UK, Europe, US & Australia.

• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’

• Full Safety Approvals

• Compact enclosure

Powersolve Electronics Ltd are pleased to announce a new range of rugged & ultra efficient single output LED Drivers. The range includes both AC – DC, and DC – DC models from 60 Watts up to 270 Watts, with output voltages from 18 to 430Vdc available.

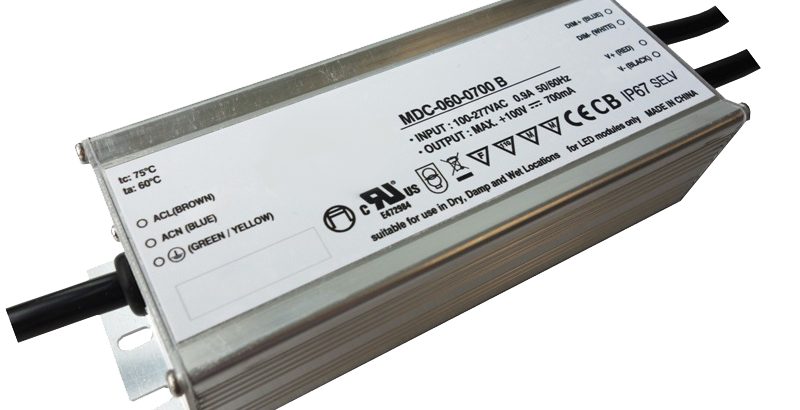

The MDC Series (AC – DC) features Built-in 10KV lightning surge protection, are housed in an aluminum IP65/ IP67 case making them ideal for both indoor and outdoor LED luminaires & lighting solutions.

The DBL Series offer a wide range DC input from 10 to
