SKU: CBM300 Series

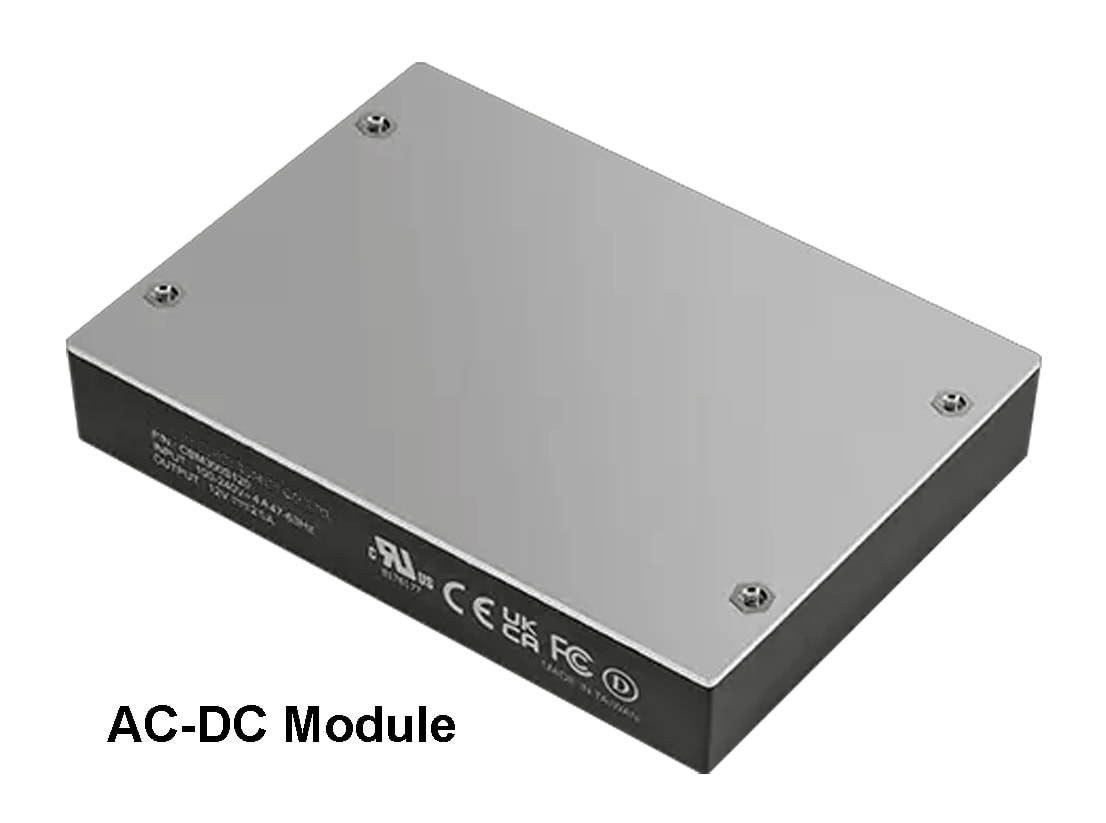

The CBM300 Series is a range of 300W high density, universal input, base plate cooled AC-DC power module

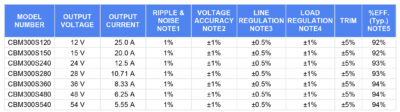

There are 7 different modules available with single output voltages of 12V, 15V, 24V, 28V 36V, 48V or 54V DC

⚫      Universal Input Range 90~264Vac

⚫      High Efficiency up to 94%

⚫      Class I

⚫      No Load Input Power Consumption<0.5W

⚫      Peak Power Operation up to 360Watt for 5s

⚫      Approval IEC/EN/UL 62368-1

⚫      Approval EN 55032 and CISPR/FCC Class B

⚫      Operating Altitude 5000m

⚫      Continuous Short Circuit Protection

⚫      Over Voltage Protection

⚫      19.7mm Ultra Low-Profile Package

⚫      Full Load with Baseplate Cooled and No Fan Required

⚫      Build in EMI Filters Bulk Capacitor and Output Capacitors

⚫      High Power Density 24.95W/Inches3

⚫      Wide Operating Temperature Range
