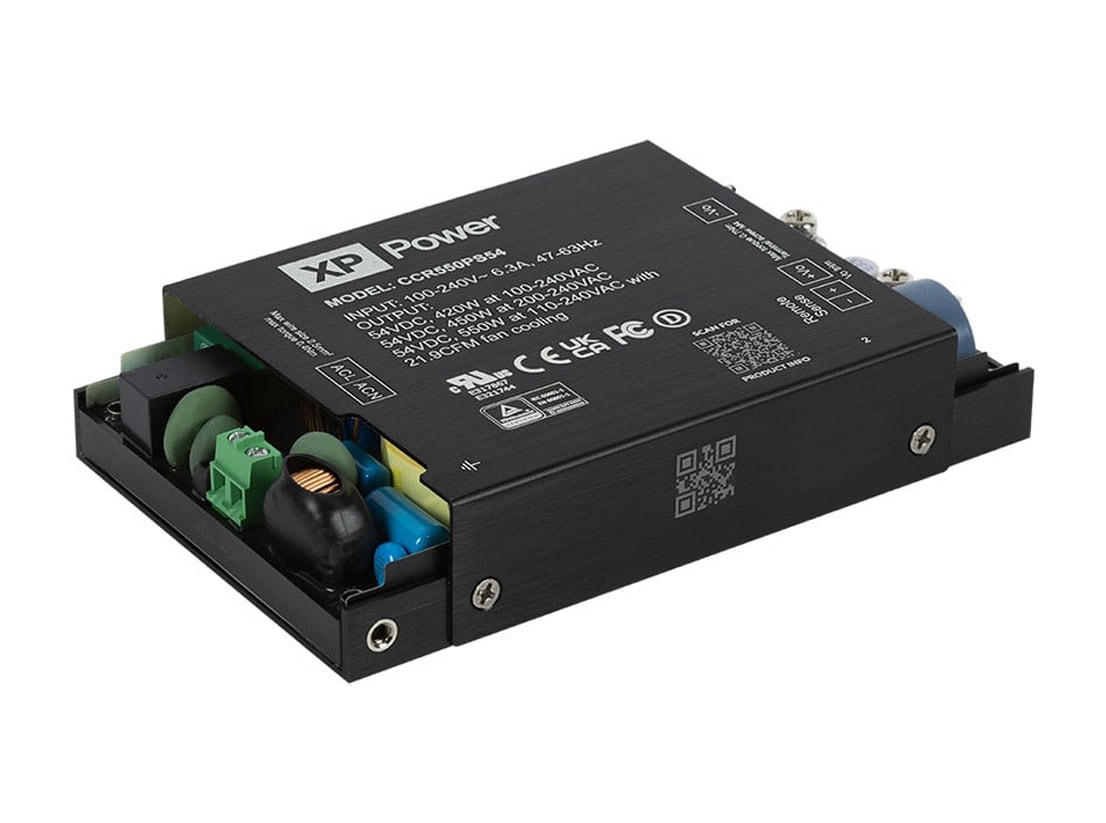

CCR550 Series
£0.00
SKU: CCR550 Series
The CCR550 series of compact medical AC-DC power supplies are designed to operate in convection, conduction, and fan cooled applications with power ratings from 230W to 550W. CCR550 offers high efficiency and high power density in a low 1" profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications.
Featuring Class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR550 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
550W fan cooled, 450W conduction cooled
Universal, single phase input: 85 to 264VAC
129.4 x 83.5mm footprint, 25.4mm profile
High efficiency, up to 94%
Low earth leakage <300µA
Low patient leakage <90µA
Medical (BF) & ITE safety approvals
Class B conducted and radiated emissions
3 year warranty
