GCS265 Series
£0.00
SKU: GCS265 Series

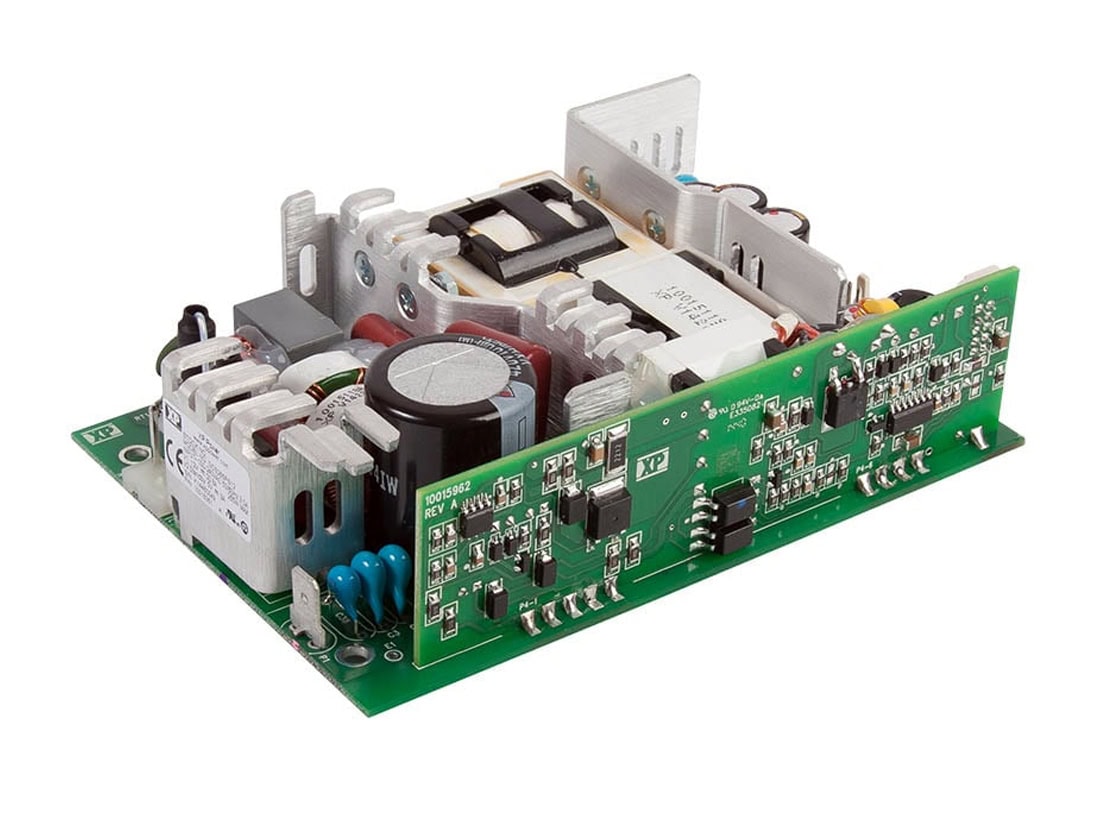

The GCS265 is a series of medical AC-DC power supplies with 265W fan cooled and 180W
convection rating.
Designed to minimize no load power consumption, the GCS265 series of high efficiency,
single-output power supplies are packaged in a 5.0” x 3.5” x 1.43” package making them
suitable for medical, industrial, information technology and domestic applications. Class I
and Class II versions are available, allowing use in professional healthcare facilities such as
hospitals and remotely in patients’ homes or workplaces.
GCS265 also features a DC OK signal for remote monitoring, remote On/Off and a 5VDC/3A
isolated auxiliary supply. With a wide range of international medical safety and ITE approvals,
class B compliance for conducted and class A radiated emissions, very low earth leakage
currents, and 2 x MOPP protection, the GCS265 benefits system designers with easy
integration into a wide range of applications.

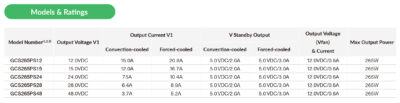

• Single outputs from 12V to 48VDC
• Universal 85 to 264VAC input range
• High efficiency – up to 93%
• ITE and medical safety approvals (Class I & II)
• 4kVAC input to output isolation
• Class B conducted emissions
• 5V/3A Standby Output
• Remote on/off option, remote sense and DC OK signal
• Overcurrent, overvoltage and short-circuit protection
• Operating temperature range from -40°C to +70°C
