PAE800 Series
£0.00
SKU: PAE800 Series

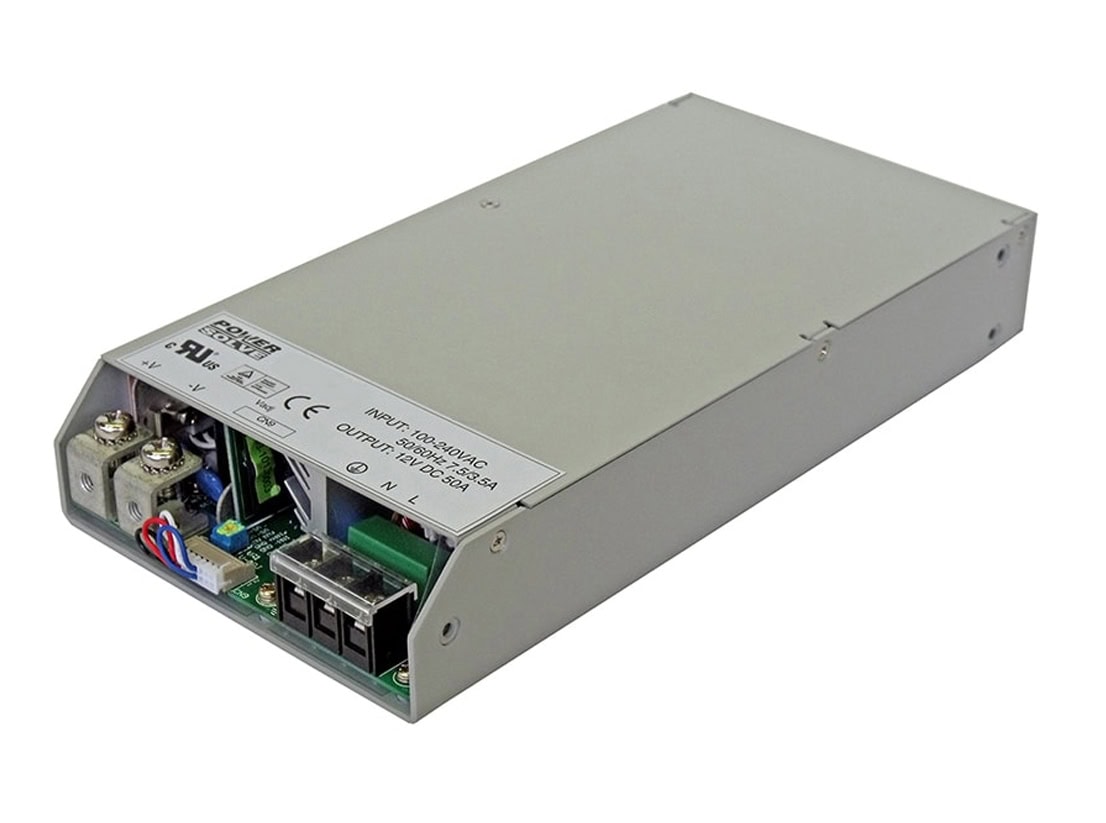

PAE800 Series is a single output 800W power supply. 7 models with DC outputs programmable from 0-105% for both Voltage and Current. Nominal outputs from 12V to 60V DC
Programmable output Voltage (0% ~ 105%)
Programmable output Current (0% ~ 105%)
(Refer to pg. 5 for connection diagram)
Power OK signal
Remote ON / OFF , Remote sense function
Protection: OVP , OLP, OTP, Fan failure
Selectable +5V / 0.5A o r +9V / 0.3A auxiliary output
Constant current limit
Remote setting multiple PSU via UART (5V TTL), I2C or RS485 (Optional)
Universal AC input / Full range
Forced current sharing at parallel operation
Global control via UART (5V TTL)
Built-in active PFC Function
